About the 45C982

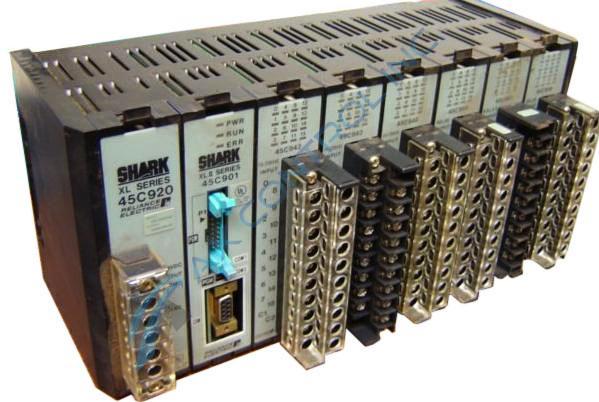

The 45C982 device is a counter module that was made to be in the Shark XL series, which was created by the company known as Reliance Electric. You can typically find the 45C982 counter module for sale in our stock despite it no longer being offered by the original manufacturer.
The 45C982 counter module is powered with 10 kHz and has four transistor outputs and four software presets. This module has connections that can be used for pulsetach inputs. Additionally, both single-ended wiring and quadrature wiring configurations can be used.
The 45C982 counter module has a maximum input pulse frequency of 10 kHz and a minimum input pulse time of 20 microseconds. The input impedance is about 10 kΩ. When the 45C982 counter module is ON, the input pulse voltage range is between 0 and 2 VDC. When the 45C982 counter module is OFF, the input pulse voltage range is between 5 and 12 VDC. This unit uses the opto-isolator method for both the input and the output. The unit also uses a common terminal for the polarity of the input and the output.
The outputs on the 45C982 counter module are open-collector transistor type, and they possess an output signal voltage that ranges between 10 and 30 VDC. This device’s output delay time is a maximum of 1 millisecond for both ON to OFF and OFF to ON sequences. Lastly, the 45C982 counter module has a dielectric strength of 500 VDC, which is measured every one minute between the ground terminals and the external terminals.
