About the 1SU42015

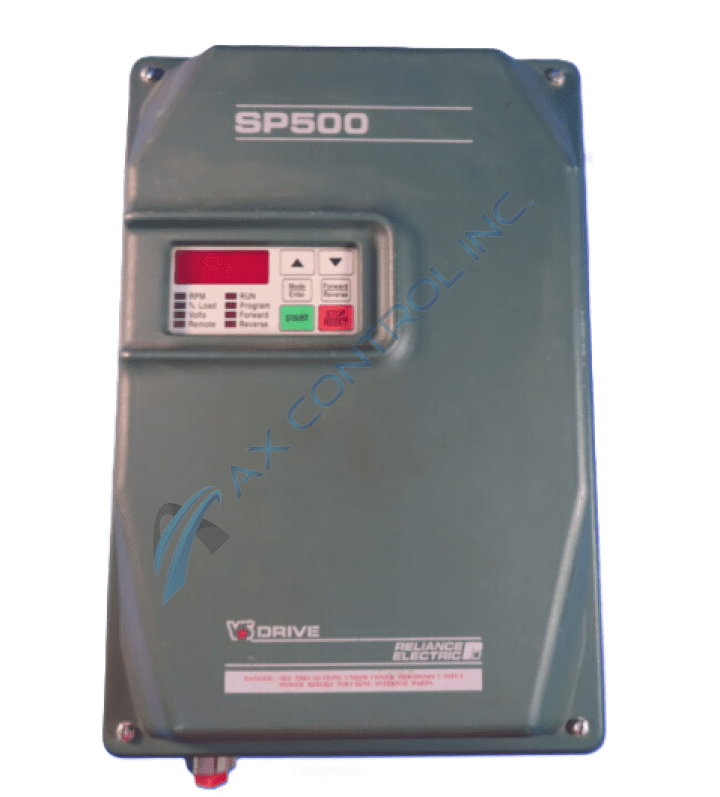

1SU42015 is an SP500 drive that is manufactured by Reliance Electric. This drive has a rated horsepower of 15.0 HP and is contained in a NEMA 12 enclosure. The rated voltage is 380-460 VAC. The enclosure size for this drive is size D. The dimensions of Enclosure D are 465.2 mm (18.31 in) (H) x 198.9 mm (7.83 in) (D) x 286.5 mm (11.28 in) (W). The weight of enclosure D is 15.3 kg (34 lb).
There are many parameters on the drive that the user may need to reference. U.000 is the Torque Reference Source. U.001 is the Encoder PPR. U.002 references the Motor Poles. U.003 references the Motor Nameplate Base Frequency. U.004 references the Motor Nameplate Amps. U.005 references the Motor Nameplate RPM. U.006 references the Magnetizing Current. U.007 references the Motor Nameplate Volts. U.008 references the Torque Self-Tune Enable. U.009 references the Torque Self-Tune Result. U.012 references the Speed Regulator Proportional Gain. U.013 references the Speed Regulator Integral Gain. U.014 references the Torque Regulator Proportional Gain. U.015 references the Torque Regulator Integral Gain. U.016 references the Field Weakening Start RPM. U.017 references the Motor Top Speed. U.018 references the AC Line Volts. U.019 references the Flux Current Regulator Proportional Gain. U.020 references the Flux Current Regulator Integral Gain. U.021 references the Rotor Time Constant. U.022 references the Motor Nameplate Horsepower. U.023 references the Low DC Bus Fault Avoidance Enable. U.024 references the High DC Bus Fault Avoidance Enable.
