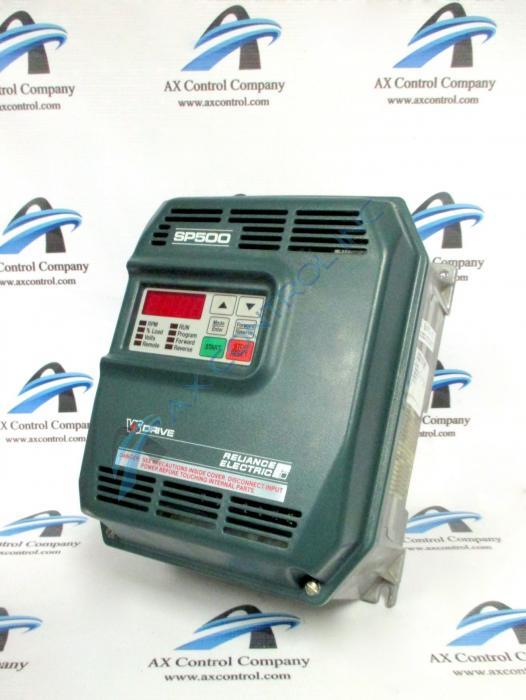

Reliance Electric SP500 Drive.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 1SU51002 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 1SU51002
  • SKU: 1SU51002RE
  • Manufacturer: Reliance Electric
  • Series: SP500 AC Drives

1SU51002 Technical Specifications

Manufacturer Reliance Electric
Series SP500
Part Number 1SU51002
HP 2 HP
Input Voltage 575 VAC
Enclosure NEMA 1 or Chassis
Hz 50/60Hz
Labeling UL Listed, IEC Certified

Product Description

1SU51002 is an SP500 drive that is manufactured by Reliance Electric. This drive has a 575 VAC and is enclosed in a NEMA 1 or chassis enclosure. The horsepower rating is 2.0 HP. The drive has many customizable parameters. Parameter number F-10 is the Carrier Frequency, wherein the default setting is 4 KHz. Parameter number F-11 is the Remote Reference Gain, wherein the range is 60-100% and the default setting is 100%. Parameter number F-12 is the Remote Reference Offset, wherein the range is 0-40% and the default setting is 0%. Parameter number F-13 is the Percent Selected Speed Reference Display Enable, for which the default setting is OFF. Parameter number F-14 is the Electronic Thermal Overload, wherein the range is 20-100% and the default setting is 100%.

Parameter number F-15 is the Electronic Thermal Overload Enable, for which the default setting is ON. Parameter number F-16 is the Coast Stop Enable, for which the default setting is ON. Parameter number F-17 is the Reverse Disable, for which the default setting is OFF. Parameter number F-18 is the RPM Setpoint Enable, for which the default setting is OFF. Parameter number F-19 is the Power-Up Start Enable, for which the default setting is OFF. Parameter number F-20 is the Password Lockout Enable, for which the default setting is OFF. Parameter number F-21 is the Avoidance Frequency, for which the default setting is 5 Hz. Parameter number F-22 is the Avoidance Bandwidth, for which the default setting is 0 Hz and the range is 0.0-30.0 Hz.

Frequently Asked Questions about 1SU51002

How do we know that 1SU51002 is a 500 VAC product?
The "5" in the 1SU51002 model number indicates that 1SU51002 is a 575 input voltage model.
What are the input and output amps on a Reliance 1SU51002?
1SU51002 has a max of 3.4 input amps. 1SU51002 has 2.7 output amps.
Which manual pairs with 1SU51002?
The manual that matches up with 1SU51002 us Manual D2-3356. This manual for 1SU51002 is the SP500 AC Drive Installation and Operation manual. The manual picks out 1SU51002 and the manual is a key source for all SP500 drives, including 1SU51002.

Repair Services For 1SU51002

Type Lead Time Price Action
Repair Service 1-2 weeks $1302

Our highly skilled technicians can repair your 1SU51002. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
