3020-IOM-11

About the 3020-IOM-11

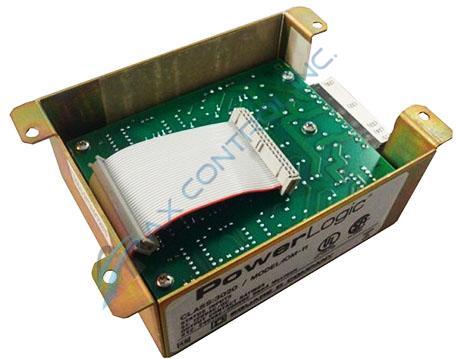

The 3020-IOM11 is a Circuit monitor from the PowerLogic series by Square D (Schneider Electric.) This is an I/O (input/output) module with one each input and output. The output on the 3020-IOM11 is a solid-state KYZ pulse output contact designed for billions of operations. This is required for pulse initiator operations. The KYZ output is a Form-C contact with a maximum rating of 96 mA. The circuit monitor keeps a count of total transactions for each of the status inputs as they are logged in the on-board event log. The 3020-IOM-11 can be configured to accept a demand synch pulse from another demand meter. The 3020-IOM11 has as a standard feature an optical communications port in the front panel. The 3020-IOM11 also has RMS metering that is compatible with Class 3020 PowerLogic circuit breakers. The RMS metering is through the 31st harmonic.

• The 3020-IOM11 has AC/DC input of 120V and an output of 240V AC and 300V DC.
• The 3020-IOM11 is mounted with four screws, two at the top of the unit and two at the bottom.
• The 3020-IOM11 has on-board data logging, automatic AlarmRelay control, and waveform capture.

PowerLogic circuit monitors are designed to be multi-function control devices able to replace a variety of relays, meters, and other components. Each circuit monitor has true RMS metering and RS-485 communication standard. THD and K-factor are two of the power quality readings displayed. The 3020-IOM11 is MV-90 compatible, UL Listed, CSA approved, Certified ANSI c12.16 revenue accuracy, CE Marking, and NOM Approved.
