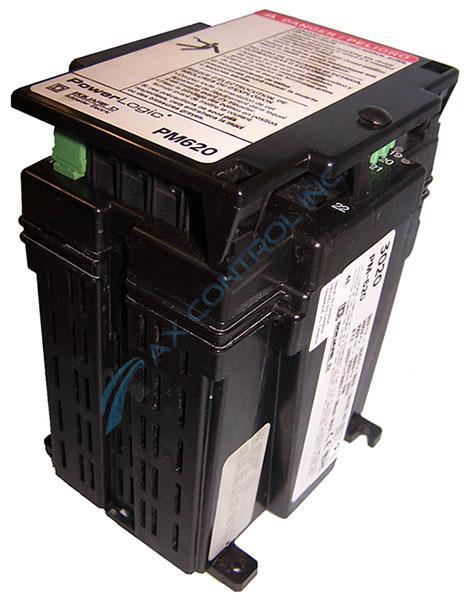

The PM-620 is a PowerLogic Power Meter

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a PM-620 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: PM-620
  • SKU: PM620SD
  • Manufacturer: Square D
  • Series: PowerLogic 3020

Product Description

The PM-620 is a PowerLogic Power Meter by Square D/Schneider Electric. The PM-620 is designed to retrofit easily into industrial settings and has applications onboard including switchboards, panelboards, and LVDO (Low Voltage Drawout) feeders. Some of the PM-620's features include:

  • ANSI C12.16 Revenue Accuracy

  • RS-485 Communications Standard

  • Can direct connect up to 600V

  • Has an onboard calendar and clock

  • Accepts 3-Phase, 3-Wire Delta (Calculated B Phase or Metered) system connections

  • Accepts 3-Phase, 4-Wire Wye system connections

  • Has a wide operating temperature of 0 to +60 degrees Celsius

The PM-620 comes with onboard instrumentation, is accurate to a 0.3% deviation, has a date/time stamp, and THD/thd. Calculated neutral current, peak power, and wiring diagnostics are standard. The PM-620 is designed with the following meter connections:

  • 3-phase Voltage inputs

  • Control Power terminals

  • KYZ Pulse output

  • 3-Phase Current inputs

  • Display communications port

  • RS-485 communications terminals

The PM-620 is CE marked, CSA certified and UL listed. To comply with CE electromagnetic compatibility requirements, the power meter must be installed within switchgear (a metal box.) A Merlin Gerin Disconnect Breaker (Type P25M #21104 or IEC 947 equivalent) needs to be connected to control power inputs and metering voltage. Power should be from a stable voltage source whenever possible. If a stable source is unavailable a metered circuit of up to 600V may be used.  This meter may be mounted on an enclosure floor, an enclosure wall, a horizontal 35 mm DIN rail, or directly behind the display on the panel door. Only a qualified electrician or electrical personnel should upgrade or install the PM-620 or its peripherals. Failure to observe safety precautions may result in personal injury or equipment damage.
