3090-SCCT124

About the 3090-SCCT124

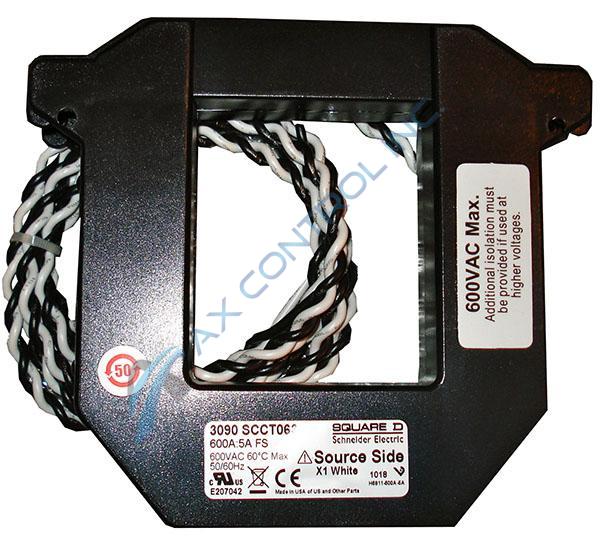

The 3090-SCCT124 is a member of the 3090-SCCT series of industrial grade Split Core Current Transformers that was brought to the consumers by Square D.

The 3090-SCCT series has many specifications that allow for it to be flexible for the users’ needs. The 3090-SCCT series’ leads are 18 AWG, 1015 twisted pair, 6 feet (1.8m length). The 3090-SCCT transformers’ has a humidity range of zero to ninety-five percent non-condensing and a temperature range that ranges from negative fifteen to sixty degrees Celsius. The frequency range is rated at 50/60 Hz. The 3090-SCCT series has an insulation class that is rated at 600 VAC.

The 3090-SCCT series of transformers can be applicably used in many situations, like the following: Equipment and power management, data logging, equipment monitoring, and power sensitive processes.

Turning to the 3090-SCCT124 transformer specifically, its housing size is classified as 4, meaning that it is capable of handling either 600 Amps or 1200 Amps of power. Additionally, housing size 4 transformers have the following dimensions: 4.90” x 5.50” x 2.45” x 1.13” x 7.88” x 5.92”. The 3090-SCCT124 transformer has a sensed amperage rating of 0 through 1200A AC. The ratio for the 3090-SCCT124 transformer was 1200:5 and the burden capacity was rated at 22.5 VA. Lastly, the F.S. accuracy for the 3090-SCCT124 transformer is rated at 1%.

Because of the larger housing size, the 3090-SCCT124 transformer has an approximate weight of 2.00 lbs. or 0.91 kg.
