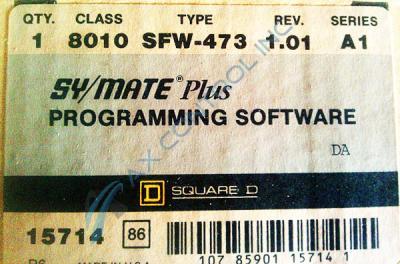

8010-SFW-473

About the 8010-SFW-473

The Groupe Schneider Square D Sy/Max Class 8010 is an obsolete product line that continues to be supplied through AX Control Inc.

Sy/Max (Sy/Mate Plus) Programming Software no longer requires any copy protection or software key access.

The 8010-SFW-473 Sy/Mate Plus Programming Software is used to program the Sy/Max Class 8030 Type DLM-110 and Type DLM-120 D-Log Data Controller Module. The software and documentation are shipped together.

Version 2.05 is the same as version 2.06 except that it does not require copy protect or software key access.

Some of the enhancements in Version 2.06 include increased cross-reference speed, increased merge speed, more printer codes, enhanced scrolling in edit mode, and new trace capability.

Up to 36 printer codes are available with version 2.06. The initial display of print-out parameters is the same as previous versions for printer code strings of six characters or less.

Version 2.06 has enhanced capability in displaying non-sequential or non-contiguous rungs. If you perform a search that causes the display of a non-sequential rung, the ladder display enters the non-contiguous display mode.

New with version 2.06 is support for Trace mode, which is available in both online and offline programming modes. With Trace mode, you can select a contact or register within a ladder rung and have the software search for the rung in which it is used as an output.
