About the 8010-SPR-200

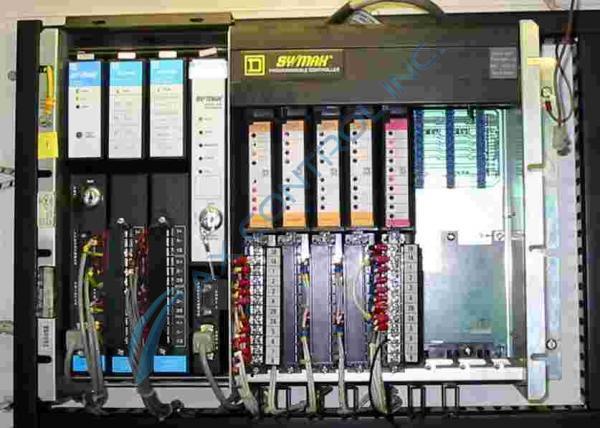

8010-SPR-200 is a Symax 8010 programmer that is manufactured by Square D. The position chart in the user instruction manual lists all the possible combinations of symbol, function, and number which can occupy one position in a rung of the programmer. The positions are external output, standard internal output, latch internal output, unlatch internal output, input contact, external output contact, internal output contact (standard or latched), space, connect, transition sensitive contact, preset decimal number, preset binary number, compare to decimal number - equality, compare to decimal number - nonequality, compare to decimal number - greater than or equality, compare to decimal number - less than, compare to binary number - equality, compare to binary number - nonequality, compare to binary number - greater than or equality, compare to binary number - less than, timing function, 1/10 second time base on delay timer, 1/10 second time base off delay timer, 1 second time base on delay timer, 1 second time base off delay timer, increment a counter, decrement a counter, data in (shift register), set a storage register bit, read a storage register bit, add, subtract, multiply, divide, square root, cascade add, equal, not equal, greater or equal, less than, reset, data transfer, shift right, and shift left. The following are the operation selections and their dedicated keys on the programmer: Counter (C), Clear Screen (Ctrl+C), Data Transfer (D), Latched Output (L), Preset (P), Relay (R), Special (S), Timer (T), and Unlatched Output (U). The programming details for this unit are explained in the user instruction manual.
