8030-CRM-211

About the 8030-CRM-211

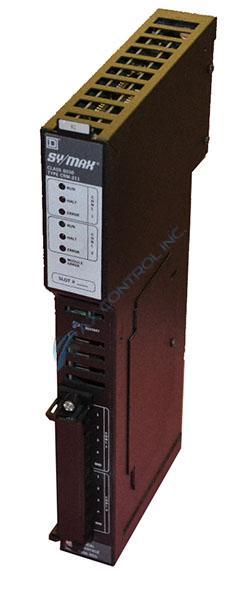

An 8030-CRM-211 is an I/O Module designed for the SY/Max Class 8030 Square D series. This module may have also been sold under the manufacturing name Schneider Electric depending on when it was mass-produced. This product can also be found under the part number 8030CRM211.

The 8030-CRM-211 is a 1000MA Local Interface that has a 4096 register. This module uses 255 resistors for external drop addressing and 3841 for data that is stored internally. All of these registers are considered to be retentive. It uses 8 drops per channel which allows the module to have an update time of 91.3 milliseconds.  This module can be plugged into an optional Module Keying kit and plugs in between the 92 and 94 spots.

This module is in the O series. It is rated at 5VDC and 1.6 amps. It is recommended that it only be used in environments ranging from 0-60 degrees Celsius. This part weighs approximately 3.4lbs. This system is made to comply with U.L. requirements. This module is to be put in the same rack assembly as the main CPU in the closest available slot.

For more information about the 8030-CRM-211, please consult the 30598-247-01D2 product manual created by Square D for their SY/Max Local and Remote Interfaces. Only a trained professional should try to install the 8030-CRM-211 to prevent any type of damage to the interface or personal injuries.

AX Control offers many different shipping options for the 8030-CRM-211. This includes standard ground and air shipping. Please call or email AX Control directly if you have any questions about the compatibility of the 8030-CRM-211 with your current system.
