8030-CRM-220

About the 8030-CRM-220

The 8030-CRM-220 module is a remote interface module and a 4 function digital I/O rack that was designed and manufactured by Square D as part of the SY/MAX 8030 series. The obsolescence of the 8030-CRM-220 module was announced in January of 1994, but it continues to be stocked at AX Control. If you are interested in buying a 8030-CRM-220 module, then please do not hesitate to call AX Control any time between 8:00 a.m. and 5:00 p.m. during the week. You can speak to one of our sales representatives about this product and place an order for it.

The 8030-CRM-220 module is meant to be used with the SY/MAX programmable controllers. It has the capability to handle many different kinds of tasks, from very small single-machine oriented ones to systems that require hundreds or even thousands of remote I/O and register functions. By properly using the 8030-CRM-220 module, you can remotely locate both register and digital racks from a SY/MAX processor unit. You can communicate with the attached processor unit using a two pair twisted cable. By doing this, you will greatly reduced the cost of wiring to the inputs and outputs.

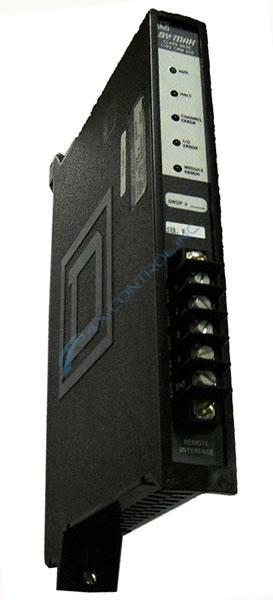

The 8030-CRM-220 module five LED status indicator lights on the front. They are labeled as “RUN,” “HALT,” “CHANNEL ERROR,” “I/O ERROR,” and “MODULE ERROR.” The first of these LED status indicator lights is green, while the rest are red. Below that, there are five terminals towards the bottom of the device.

The 8030-CRM-220 module has an approximate total weight of 2.54 lbs. or 1.15 kg.
