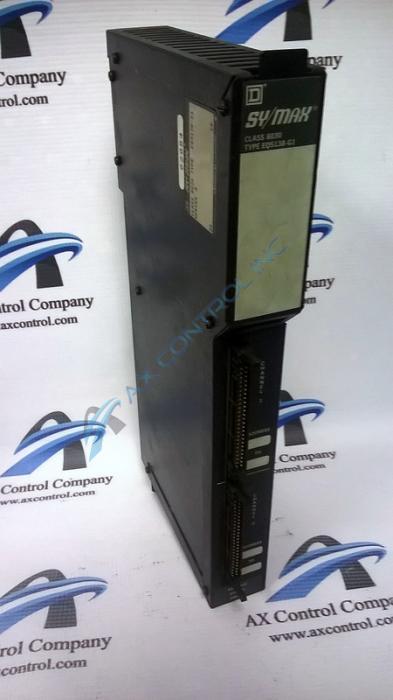

About the 8030-EQ5138-G1
The 8030-EQ5138-G1 is one of two Parallel digital interface modules available for the 8030 Sy/Max system. This module functions as a Parallel digital driver interface, and typically works in conjunction with the 8030-EQ5138-g2 module (Parallell Digital Receiver Interface.)
The 8030-EQ5138-G1 is used to connect a processor rack to two nearby digital racks. It cannot be used with remote racks. The module allows communication between these modules. Parallel communication between these two modules allows inputs and outputs to be more quickly updated.
The 8030-EQ5138-G1 mounts into a register slot in the same rack as a Sy/Max processor unit. It connects to the corresponding digital receiver using ribbon cables.
The 8030-EQ5138-G1 weighs approximately 2.55 pounds before the addition of the shipping materials we add to keep your purchase safe. This unit has been discontinued by the OEM but is typically in stock within the AX Control warehouse.
Square D Sy/Max modules are designed to work together as independent modules built into integrated rack systems. Class 8030 systems include panels, I/O modules, CPUs, power modules, and power supplies. AX Control maintains an on-hand stock of the majority of these components. Check our website for current inventory.
For additional information regarding the 8030-EQ5138-G1, including detailed information on the unit’s handling, installation, and maintenance requirements, please refer to original documentation from the OEM including data sheets, user guides, and manuals. If you no longer have these documents at your disposal, AX Control may be able to assist you with replacements along with your order.
