About the 8030-HIM-101
The 8030-HIM-101 Sy/Max PLC 8-function PLC Input module is designed to provide Input feed to register addresses like other I/O modules within the Sy/Max 8030 series. This is a rack-mounted I/O. Accessories for this unit including cables, power supplies, batteries, or software are typically not included with this unit.

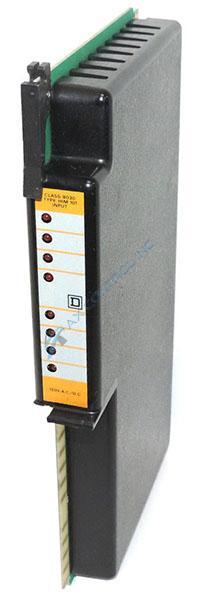

The 8030-HIM-101 weighs approximately 0.95 pounds before the addition of external shipping materials. The unit is designed with an external protective case that slides into a standard rack slot in an 8030 system. The front of the unit is designed with eight LED indicators--one for each input on the device. Additionally, there is a terminal strip available on the front surface of the unit that will accept wiring. The unit has a current draw of 60 mA @ 5 VDC.
Eight Function I/O modules are designed to take up less space per I/O point than other types of I/O units in the 8030 series. The front terminal block can be removed for wiring. These I/O modules are most often used in HRK rack assemblies that offer mounting slots for a model 300 remote interface or processor. These racks typically hold eight of these modules or sixteen.
For additional important information regarding proper installation procedures and handling instructions, please refer to the original manual for this device, or to data sheets or product guides sent out with the unit. AX Control may have access to this type of documentation if you no longer have your originals.
