8030-HOM-211

About the 8030-HOM-211

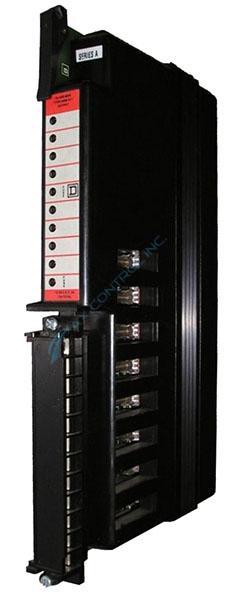

The Type HOM-211 12-50 VAC Output Module can drive a maximum of 8 loads. The outputs are optically isolated and each output has an LED that when lit, indicates that the output is receiving an ON signal from the processor. Space for labeling is provided next to each output for identification.

The 8 outputs are grouped into two sets of four and each group shares a common terminal (two common terminals per module). Two LEDs on the front of the module, one for each group of 4 outputs, illuminate when a blown fuse is detected.

The maximum current is 2 Amps per output and a total of 12 Amps per module in a 0-50℃ temperature environment and 10 A in 50-60℃. The maximum Off state leakage is 2.7 mA at 250 V 50/60 Hz. The maximum surge current is 25 A for 1 cycle (60 Hz) (no more than 1 time/second). The rated module current draw on a Sy/Max power supply is 220 mA per module at 75% duty cycle and 265 mA per module at 100% duty cycle.

The fuse type rated for the module is AGC 3, 3A, 250 V. Each of the 8 outputs is individually fused. Lower-rated fuses may be installed, depending on the output devices being controlled. Fuses are accessible through openings in the side of the module.

The ambient temperature rating is 0-6℃. The humidity rating is 0-95% non-condensing. The weight (unpackaged) is 1.8 lbs (0.83 kg).
