8030-ROM-221

About the 8030-ROM-221

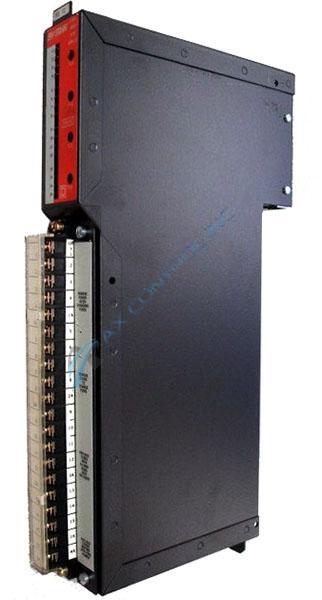

The 8030-ROM-221 is a 16 Function 120 VAC Output Module produced by Sy/Max. The module uses an optical type of isolation. The isolation rating is the 2500 V RMS. The voltage operating range is 20-138 VAC (50/60Hz). The turn ON and OFF time is rated 8ms Nominal.

There are four fuses 5A Buss MTH. The output LED is a red LED that illuminates when receiving an “ON” signal from the processor. The fuse LED is a red LED that will illuminate when a blown fuse is detected (one for each group of four outputs). The maximum continuous current is 2 amps per output, 4 amps per 4 outputs, 16 amps per module.

The maximum inrush current is 25 amps for 3 cycles at 50/60 Hz, no more than once every 10 secs. The minimum load current is 6mA. The maximum on-state voltage drop across the output is 2.0V at 2 amp load. The max off-state leakage current is 2.0 mA at 138 V, 50/60 Hz. The rated current draw on the Sy/Max Power supply is 950 mA at 100% Duty Cycle.

The outputs for this module are as follows. Output 1 (01), Output 2 (02), Output 3 (03), Output 4 (04), L1 (1A), Output (05), Output 6 (06), Output 7 (07), Output 8 (08), L1 (2A), Output 9 (09), Output 10 (10), Output 11 (11), Output 12 (12), L1 (3A), Output 13 (13), Output 14 (14), Output 15 (15), Output 16 (16), and L1 (4A).
