8030-ROM-441

About the 8030-ROM-441

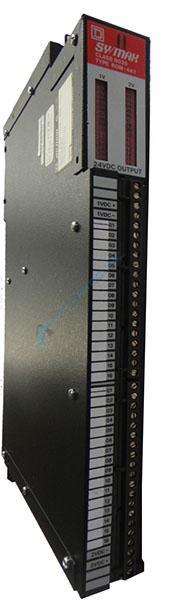

The 8030-ROM-441 is a 24V VDC 32 Function Output Module made by Sy/Max. The isolation rating is 2500 V RMS. The voltage operating range is twenty-one through twenty-nine VDC. The turn-on time is 100 usec. Maximum at 24 V. The turn off time is 100 usec. Maximum with 0.5 A inductive load. The output LED operation will illuminate red when receiving an ON signal from the processor. The current maximum is 0.5 Amps per output, and 12 Amps per module. The maximum on-state voltage drop across output is 1.5 VDC. The maximum off-state leakage current 0.1 mA max. The max surge current is 3 amp for 300 usec. Duty Cycle less than or equal to 2%. The rated current draw on Sy/Max power supply is 980 mA at 100% Duty Cycle. The outputs are labeled as follows. Positive (VDC+), Negative (VDC-), Output 1 (01), Output 2 (02), Output 3 (03), Output 4 (04), Output 5 (05), Output 6 (06), Output 7 (07), Output 8 (08), Output 9 (09), Output 10 (10), Output 11 (11), Output 12 (12), Output 13 (13), Output 14 (14), Output 15 (15), Output 16 (16), Positive (VDC+), Negative (VDC-), Output 17 (01), Output 18 (02), Output 19 (03), Output 20 (04), Output 21 (05), Output 22 (06), Output 23 (07), Output 24 (08), Output 25 (09), Output 26 (10), Output 27 (11), Output 28 (12), Output 29 (13), Output 30 (14), Output 31 (15), and Output 32 (16).

Please email or call AX Control for a price quote.
